3PC STAINLESS STEEL 316 BALL VALVE
V-3AM 1000WOG

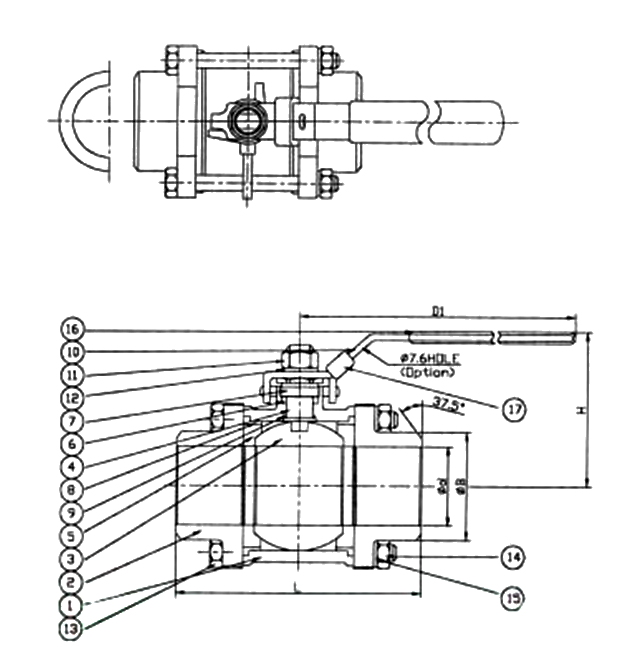

3PCS STAINLESS STEEL 316BALL VALVE
| NO | PART NAME | MATRIAL | QTY | |
| STAINLESS STEEL | CARBON STEEL | |||
| 1 | BODY | ASTM A351 Gr.CF8M | ASTM A216 WCB | 1 |
| 2 | CAP | ASTM A351 Gr.CF8M | ASTM A216 WCB | 2 |
| 3 | BALL | ASTM A351 Gr.CF8M | ASTM A351 Gr.CF8M | 1 |
| 4 | STEM | ASTM A276 Gr.316 | ASTM A276 Gr.316 | 1 |
| 5 | SEAT | PTFE | PTFE | 2 |
| 6 | PACKING | PTFE | PTFE | 1 |
| 7 | GLAND | S.S.304 | S.S.304 | 1 |
| 8 | END SEALS | PTFE | PTFE | 2 |
| 9 | THRUST WASHER | PTFE | PTFE | 1 |
| 10 | HANDLE | S.S.304 | S.S.304 | 1 |
| 11 | HANDLE SLEEVE | S.S.304 | S.S.304 | 1 |
| 12 | SPRING WASHER | S.S.304 | S.S.304 | 1 |
| 13 | BOLTS | ASTM A193 Gr.B8 | ASTM A193 Gr.B8 | 1 |
| 14 | BOLT NUTS | ASTM A194 Gr.B | ASTM A194 Gr.B | 4 |
| 15 | BOLT WASHER | S.S.304 | S.S.304 | 4 |
| 16 | HANDLE SLEEVE | VINYL GRIP | VINYL GRIP | 4 |
| 17 | LOCKING PLATE | S.S.304 | S.S.304 | 1 |
| SIZE | Ød | L | H | D1 | B |
| 1 / 4" | 11.0 | 60.5 | 57.20 | 105 | 17.2 |
| 3 / 8" | 12.5 | 60.5 | 57.20 | 105 | 17.2 |
| 1 / 2" | 15.0 | 65.5 | 59.10 | 105 | 21.3 |
| 3 / 4" | 20.0 | 77.6 | 62.55 | 105 | 26.9 |
| 1" | 25.0 | 83.5 | 70.70 | 128 | 33.7 |
| 1 1/4" | 32.0 | 102.5 | 76.20 | 128 | 42.4 |
| 1 1/2" | 38.0 | 117.6 | 89.10 | 154 | 48.3 |
| 2" | 50.0 | 130.2 | 98.15 | 194 | 60.3 |
| 2 1/2" | 65.0 | 158.6 | 110.6 | 194 | 76.1 |
| 3" | 80.0 | 177.8 | 124.0 | 276 | 88.9 |
| 4" | 100.0 | 225.2 | 168.5 | 335 | 114.3 |
